AirsoftPro CNC Zero Trigger Kit For VSR Version 4.1 6631 Disc

AirsoftPro CNC Zero Trigger Kit For VSR Version 4.1 6631 Disc

SKU: nsp040

Availability: Out of stock

SNIPER Upgrade parts

Details

Durable and reliable trigger mechanism is basic premise for a successful upgrade sniper rifle. Stock supplied trigger mechanism is sufficient for basic springs, but when you use stronger springs it significantly increases possibility of damage. Rifles working on a system Marui VSR or AWS have a very bad piston catch system. It is capturing only a small edge and angle of 45 degrees. This is sufficient for relatively basic weak springs, but can't hold stronger springs. In addition, 45 degree system lifts the piston end and causes jams in the cylinder. AirsoftPro brings the new CNC metal trigger mechanism with an entirely different solution. It holds the piston at 90 degrees (Some customers call it Zero Trigger). Surface is larger and can hold stronger springs. This comes with a choice of M130, M140 or M150 spring, please choose from the drop down menu above.

Specs:

  • Body made by CNC machining from light, but durable aluminum alloy 6061-T6.
  • Aluminum parts with high quality anodized finish.
  • Piston catch, lever and the spring guide stopper are made of steel and hardened to HRC48-55.
  • The top of the trigger is equiped with ball bearing for the smoother trigger press.
  • Axis are made of stainless steel.
  • Two torsional springs safety returns catch to the original position.
  • Whole trigger is made of 27 parts.
  • Tested on springs up to M180.

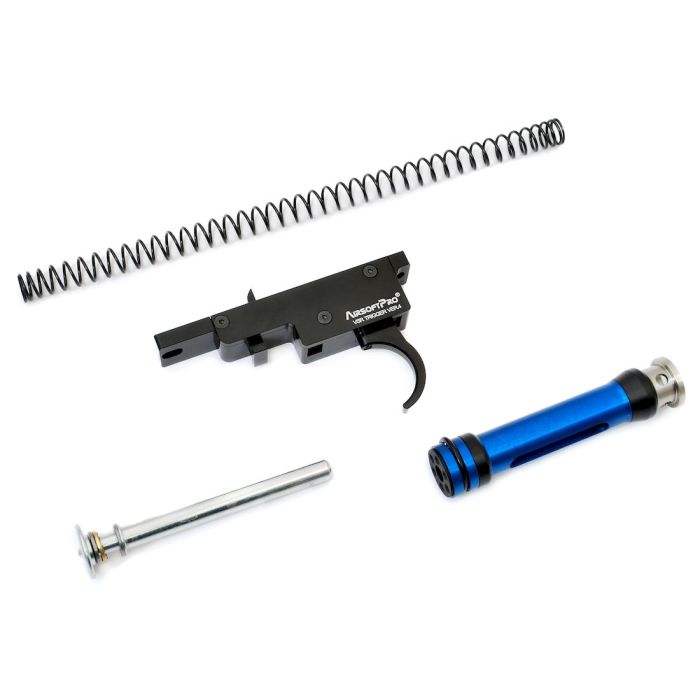

  • Package include trigger set, spring guide, spring and hybrid piston.

Version 3 improvements:

  • Brand new steel spring guide, which allows to use standard 7mm springs. And once you put 9mm rotation sleeve on it, then you can use upgrade 9mm springs. (means inner spring diameter)
  • Outer rotation spring guide sleeve is equiped with the thrust axial bearing. It makes bull back much smoother, because allows limited spring rotation.
  • Set is equiped with the brand new VDSiCr springs in M140. Springs are marked "S" and are little bit shorter compare to our common 9mm springs. It is due to ball bearing on the spring guide. Long standard springs would not fit inside piston.
  • New body construction makes assembly much faster and do not require trigger guard modification!
  • Modern packing in a PVC box for better protection.

Version 4 improvements:

  • Version 4 was made entirely from the beginning. It has a dimensionally different body that now makes it easier to fit with two screws.
  • Trigger sear is now longer , angled, so trigger is much more sensitive. No need for a hard press anymore!
  • Above all, the trigger is now adjustable. You can change trigger strength by tightening of the small screw at the bottom. (Require 1,5mm hex key)
  • Please note, that version 4 has NO safety lever option anymore.

This high quality trigger set is dedicated for Marui VSR-10, Marui VSR-10 G-Spec, JG BAR-10, Well MB02, MB03, MB07, MB09, MB10, MB11.

These generally require a level of technical skill to fit properly so we do advise you have it fitted by a competent technician.

Any questions on compatibility, installation or if you would like one of our in house techs to fit the parts for you, please email us on [email protected] or call us on 01293 525880
